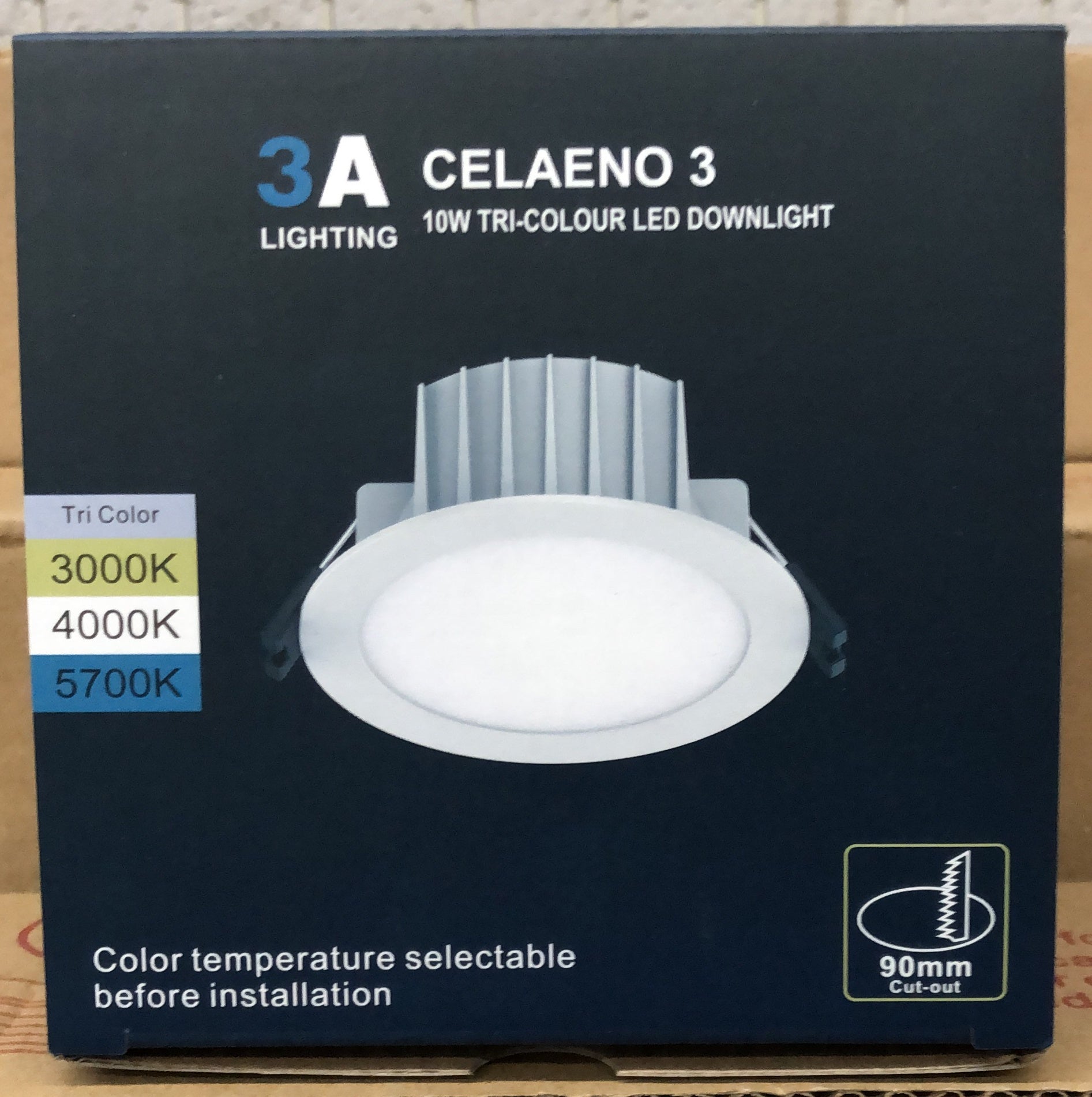

SMD LED Down light adopts high lumen SMD LED, PC diffuser with even light output. Plastic coated aluminum housing with internal driver design; it is economical and practical downlight version. Dimmable driver shares great popularity by the excellent dimming effect.
- Type A is concave and Type B is flat
- IP54 waterproof in front.
- Interchangeable CCT(3000/4000/5700k) with slide switch.
- Triac dimming.
- Compact design, built-in driver.
Specifications
- Input voltage: 240V
- Wattage: 10W
- Colour Temp: 3000K / 4000K / 5700K
- Lumens: 660 ~ 720 Lumens
- Beam: 100°
- CRI: >80
- Dimmable: Yes
- IP Rating: IP20 (for other part) / IP54 (only for the LED cover)
Dimensions
- Diameter: 115mm
- Height: 44.5mm
- Cutout: 90mm ~ 95mm
It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
