Design:
Surface finish: Matt
Product Brand: Clipsal
Range of Product: Iconic
Colour code: XW

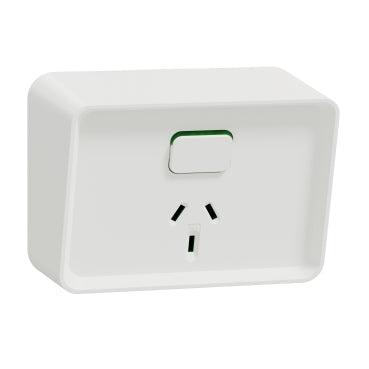

Product or component type: Switched socket
Physical:
Control Type: ON/OFF Button/ Rocker
Pin Number: 3
Number of Power Socket Outlets: 1
Fixing Mode: By screws/ By clipping locks
Local Signaling: Without light indicator
Device Mounting: Surface or wall mounted
Mounting Position: Horizontal
Type of Installation: Outdoor
[Ue] Rated Operational Voltage: 250V AC
[In] Rated Current: 10 A
Clamping Connection Capacity: 4 x 2.5mm or 3 x 4mm
Connections - Terminals: 3 Screw terminal
Depth: 70mm
Height: 85mm
Width: 115.5mm
IP Degree of Protection: IP54
Product Certifications: RCM
Electrical Durability: 12000 cycles
Ambient Air Temperature for Storage: 0...60 Degrees
Standards: AZ/NZS 3112
Relative Humidity: 10...95%
Ambient Air Temperature for Operation: 0...45%
Reach Regulation: Reference contains substances of very high concern above the threshold
EU RoHS Directive: Complaint
Device Presentation: Complete product
Outlet Poles Configuration: 1P + E
Material:
- PC (Polycarbonate)
- Abs (Acrylonitrile Butadiene-Styrene)
- POM (Polyoxymethylene)
