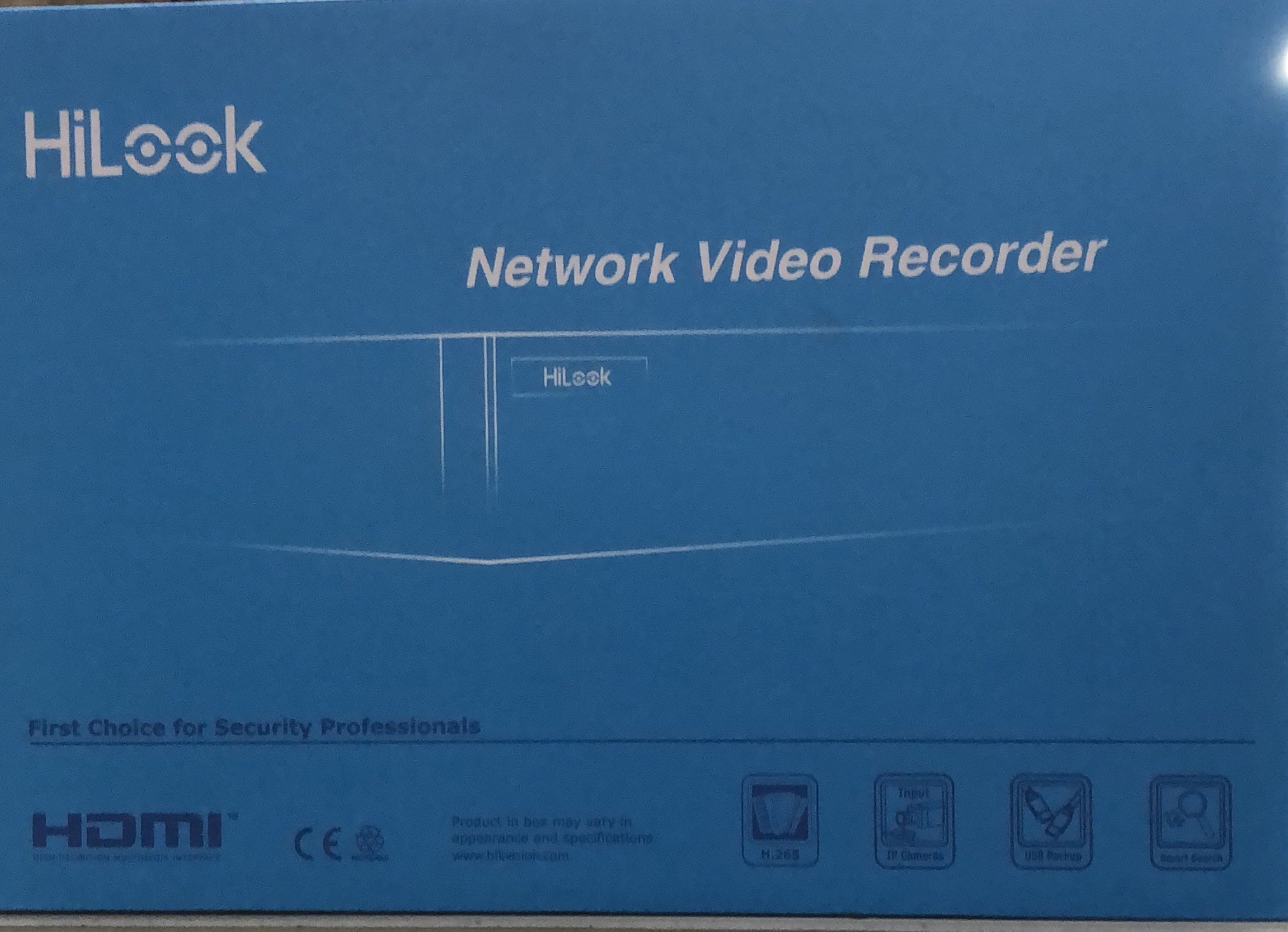

Get 8 Channel NVR - HiLook By Hikvision HL-NVR-108MH- C/8P today!
Security License Holders Only
NO HDD INCLUDED
HD Input
H.265+/H.265/H.264/H.264+ video formats
Connectable to the HIKVISION/HiLooK IP Cameras ONLY
Up to 8 IP cameras can be connected
Recording at upto 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA simultaneous output (NVR-104MH-C/4P)
HDMI and VGA independent outputs (NVR-108MH-C/8P)
HDMI Video output at up to 4K (3840 _ 2160) resolution
HD Storage
1 SATA interface connectable for recording and backup
H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
1 self-adaptive 10/100/1000Mbps network interface
4/8 independent PoE network interfaces are provided
Various Applications
Centralized managementof IP cameras, including configuration, information import/export, real-time informationdisplay, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
VCA detectionalarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Hik-Connect for easy network management
Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 8-ch
IP Video input: Up to 8 MP resolution
Network
Incoming bandwidth: 40Mbps
Outgoing bandwidth: 80Mbps
Video/Audio Output
LCD/HDMI/VGA output resolution: HDMI:
1-ch, 4K (3840 _ 2160)/30Hz, 1920 _ 1080p/60Hz, 1600 _ 1200/60Hz, 1280 _ 1024/60Hz, 1280 _ 720/60Hz, 1024 _ 768/60Hz;
VGA:
1-ch, 1920 _ 1080p/60Hz, 1600 _ 1200/60Hz, 1280 _ 1024/60Hz, 1280 _ 720/60Hz, 1024 _ 768/60Hz ;
HDMI/VGA simultaneous output
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 4-ch
Decoding
Capability: 1-ch @ 8 MP / 4-ch @ 1080p
Hard Disk
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
POE
Supported Standard: AF and AT
Interface: 4 independent 10 /100 Mbps PoE
Ethernet interfaces
Max. Power: 50W
General
Power Supply: 48 VDC
Power: ≤ 65 W
Consumption(without hard disk and POE): ≤ 10 W (without enabling PoE)
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 315 _ 240 _ 48 mm (12.4" _ 9.4" _ 1.9")
Weight(without HDD):
