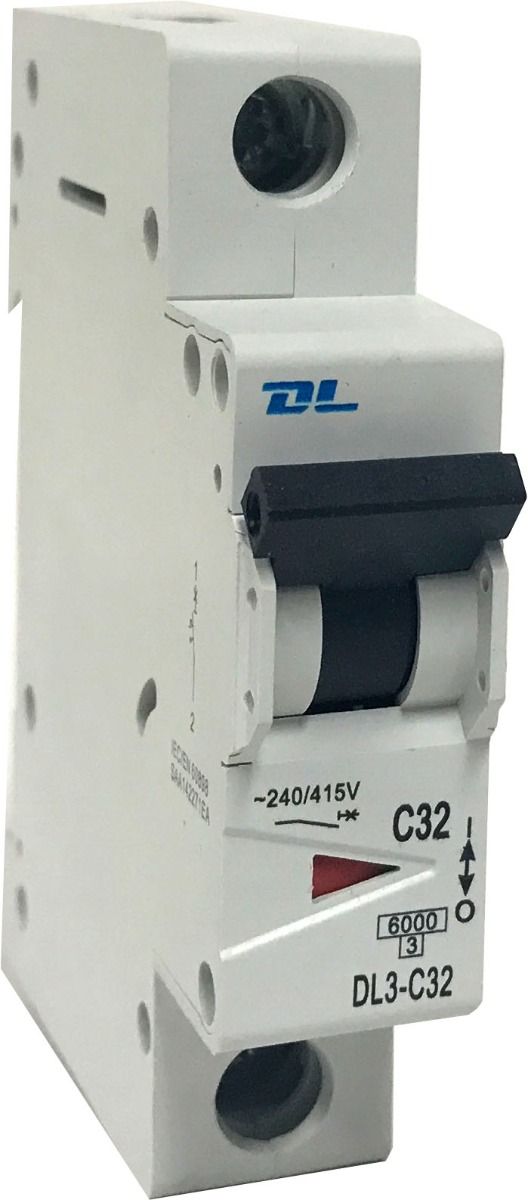

Construction and Feature
Protection against both overload and short circuit
High short-circuit capacity
Contact position indication
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
Technical Data
Pole No.: 1
Rated voltage: AC 230
Rated current (A): 50
Tripping curve: C
Rated short-circuit capacity (Icn):6000A
Rated frequency: 50/60Hz
Energy limiting class: 3
Rated impulse withstand voltage: 6.2kV
Electro-mechanical endurance:6000
Contact position indication
Connection terminal:
Screw terminal
Pillar terminal with clamp
Connection capacity: Rigid conductor up to 25mm2
Fastening torque: 2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
